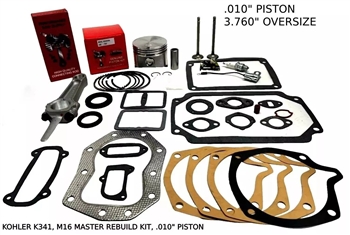

SPECS ON KIT:
.010" OVERSIZE PISTON WITH CHROME RINGS, WRIST PIN & CLIPS
CONNECTING ROD STANDARD, WE ALSO HAVE AVAILABLE .010" & .020" OVERSIZE
NEW INTAKE VALVE
NEW EXHAUST VALVE
COMPLETE GASKET SET WITH SEALS 45-755-04-S
POINTS & CONDENSER
SPARK PLUG CHAMPION H10 OR NGK B4L DEPENDING ON STOCK IN WAREHOUSE
ONLINE KOHLER SHOP MANUAL AVAILABLE ON THE INTERNET
NOTE: IF TIMING TOOL IS NEEDED TO TIME BALANCE GEARS WE HAVE THE TOOL AVAILABLE IN MY EBAY STORE OR SEARCH EBAY FOR KOHLER PART # Y-357 OR 25-455-06-S
K341-71384, K341-71381, K341-71247, K341-71270, K341-71343, K341-71350, K341-71355, K341-71356, K341-71369, K341-71366, K341-71358, K341-71370, K341-71309, K341-71340, K341-71334, K341-71332, K341-71327, K341-71209, K341-71179, K341-71218, K341-71221, K341-71105, K341-71127, K341-71379, K341-71380, K341-71382, K341-71377, K341-71378, K341-71375, K341-71376, K341-71277, K341-71278, K341-71275, K341-71273, K341-71271, K341-71272, K341-71300, K341-71298, K341-71302, K341-71293, K341-71292, K341-71295, K341-71294, K341-71256, K341-71261, K341-71245, K341-71246, K341-71243, K341-71242, K341-71262, K341-71263, K341-71266, K341-71265, K341-71269, K341-71267, K341-71268, K341-71330, K341-71326, K341-71325, K341-71338, K341-71316, K341-71315, K341-71324, K341-71318, K341-71306, K341-71303, K341-71311, K341-71354, K341-71344, K341-71345, K341-71360, K341-71373, K341-71371, K341-71121, K341-71120, K341-71113, K341-71112, K341-71111, K341-71108, K341-71109, K341-71106, K341-71158, K341-71164, K341-71151, K341-71154, K341-71171, K341-71167, K341-71169, K341-71135, K341-71128, K341-71138, K341-71141, K341-71143, K341-71148, K341-71147, K341-71215, K341-71224, K341-71227, K341-71222, K341-71223, K341-71232, K341-71233, K341-71230, K341-71229, K341-71234, K341-71236, K341-71240, K341-71211, K341-71206, K341-71207, K341-71203, K341-71198, K341-71188, K341-71187, K341-71175, K341-71172, K341-71177, K341-71176, K341-71183, K341-71181, K341-71178, K341-71258, M16-711506, M16-711507, M16-711512, M16-711510, M16-711502, M16-711503, M16-711505, M16-711504, M16-711500, M16-711501, M16-711593, M16-711595, M16-711591, M16-711590, M16-711592, M16-711589, M16-711588, M16-711548, M16-711547, M16-711546, M16-711545, M16-711541, M16-711542, M16-711544, M16-711543, M16-711539, M16-711540, M16-711534, M16-711535, M16-711536, M16-711537, M16-711529, M16-711530, M16-711532, M16-711533, M16-711526, M16-711528, M16-711527, M16-711524, M16-711525, M16-711523, M16-711521, M16-711518, M16-711514, M16-711549, M16-711551, M16-711552, M16-711553, M16-711554, M16-711513, M16-711519
TORQUE ON CONNECTING ROD 260 INCH POUNDS
CYLINDER HEAD BOLTS 25-30 FOOT POUNDS
OIL PAN AND CLOSURE PLATE 35 FOOT POUNDS
VALVE ADJUSTMENT
INTAKE VALVE .010"
EXHAUST VALVE .019"
POINTS GAP .020"
NOTE: PROPER CONNECTING ROD INSTALLATION IS HOLE IN CONNECTING ROD CAP FACES THE CAMSHAFT.
16HP KOHLER BORE SPECS:
3.750" STANDARD
3.760" .010" OVERSIZE
3.770" .020" OVERSIZE
3.780" .030" OVERSIZE
3.790" .040" OVERSIZE
CONNECTING ROD SPECS:
1.500" STANDARD
1.490" .010" UNDERSIZE
1.480" .020" UNDERSIZE
NOTE: IF CYLINDER IS MORE THEN .003" TAPER IT WILL NEED TO BE REBORED AS INSTALLING NEW PISTON AND RINGS IN A TAPER BORE THEY WILL PROBABLY CAUSE THE ENGINE TO SMOKE & BURN OIL.
KOHLER RECOMMENDS AFTER HONING & OR REBORING THAT THE CYLINDER BE WASHED IN HOT SOAPY WATER TO ENSURE ARE GRIT FROM MACHINING IS REMOVED BEFORE THE NEW PARTS ARE INSTALLED IN THE ENGINE.
